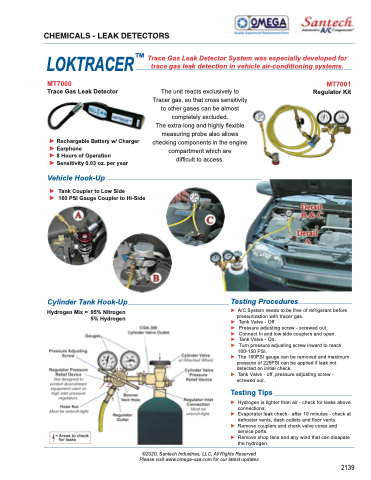

Page 645 - Omega-Santech Catalog 2020

CHEMICALS - LEAK DETECTORS
LOKTRACERTM Trace Gas Leak Detector System was especially developed for trace gas leak detection in vehicle air-conditioning systems.
MT7000
Trace Gas Leak Detector
► Rechargable Battery w/ Charger ► Earphone
► 8 Hours of Operation
► Sensitivity 0.03 oz. per year
Vehicle Hook-Up
► Tank Coupler to Low Side
► 160 PSI Gauge Coupler to Hi-Side
The unit reacts exclusively to Tracer gas, so that cross sensitivity to other gases can be almost completely excluded.
The extra-long and highly flexible measuring probe also allows checking components in the engine compartment which are difficult to access.
Testing Procedures
MT7001
Regulator Kit
Cylinder Tank Hook-Up
Hydrogen Mix = 95% Nitrogen 5% Hydrogen
►
► ► ► ► ►
► ►
A/C System needs to be free of refrigerant before pressurization with tracer gas.
Tank Valve - Off.
Pressure adjusting screw - screwed out. Connect hi and low side couplers and open. Tank Valve - On.
Turn pressure adjusting screw inward to reach
100-150 PSI.
The 160PSI gauge can be removed and maximum
pressure of 225PSI can be applied if leak not detected on initial check.
Tank Valve - off, pressure adjusting screw - screwed out.
Testing Tips
► Hydrogen is lighter than air - check for leaks above connections.
► Evaporator leak check - after 10 minutes - check at defroster vents, dash outlets and floor vents.
► Remove couplers and check valve cores and
service ports.
► Remove shop fans and any wind that can disapate
the hydrogen.
