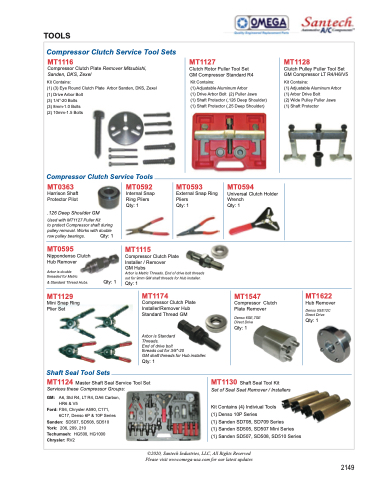

Page 655 - Omega-Santech Catalog 2020

TOOLS
Compressor Clutch Service Tool Sets
MT1116
Compressor Clutch Plate Remover Mitsubishi, Sanden, DKS, Zexel
Kit Contains:
(1) (3) Eye Round Clutch Plate Arbor Sanden, DKS, Zexel (1) Drive Arbor Bolt
(3) 1/4”-20 Bolts
(3) 8mm-1.0 Bolts
(2) 10mm-1.5 Bolts
Compressor Clutch Service Tools
MT1127
Clutch Rotor Puller Tool Set GM Compressor Standard R4
Kit Contains:
(1) Adjustable Aluminum Arbor
(1) Drive Arbor Bolt (2) Puller Jaws
(1) Shaft Protector (.126 Deep Shoulder) (1) Shaft Protector (.25 Deep Shoulder)
MT1128
Clutch Pulley Puller Tool Set GM Compressor LT R4/H6/V5
Kit Contains:
(1) Adjustable Aluminum Arbor (1) Arbor Drive Bolt
(2) Wide Pulley Puller Jaws (1) Shaft Protector
MT0363
Harrison Shaft Protector Pilot
.126 Deep Shoulder GM
Used with MT1127 Puller Kit
to protect Compressor shaft during pulley removal. Works with double row pulley bearings. Qty: 1
MT0592
Internal Snap Ring Pliers Qty: 1
MT0593
External Snap Ring Pliers
Qty: 1
MT0594
Universal Clutch Holder Wrench
Qty: 1
MT0595
Nippondenso Clutch Hub Remover
Arbor is double
threaded for Metric
& Standard Thread Hubs.
Qty: 1
MT1115
Compressor Clutch Plate
Installer / Remover
GM Hubs
Arbor is Metric Threads. End of drive bolt threads out for 9mm GM shaft threads for Hub installer. Qty: 1
MT1129
Mini Snap Ring Plier Set
Shaft Seal Tool Sets
MT1174
Compressor Clutch Plate Installer/Remover Hub Standard Thread GM
Arbor is Standard
Threads.
End of drive bolt
threads out for 3/8”-20
GM shaft threads for Hub installer. Qty: 1
MT1547
Compressor Clutch Plate Remover
Denso 6SE,7SE Direct Drive
Qty: 1
MT1130 Shaft Seal Tool Kit
Set of Seal Seat Remover / Installers
Kit Contains (4) Indiviual Tools
(1) Denso 10P Series
(1) Sanden SD708, SD709 Series
(1) Sanden SD505, SD507 Mini Series
(1) Sanden SD507, SD508, SD510 Series
MT1622
Hub Remover
Denso 5SE12C Direct Drive
Qty: 1
MT1124 Master Shaft Seal Service Tool Set Services these Compressor Groups:
GM: A6, Std R4, LT R4, DA6 Carbon, HR6 & V5
Ford: FS6, Chrysler A590, C171, 6C17, Denso 6P & 10P Series
Sanden: SD507, SD508, SD510 York: 206, 209, 210 Techumseh: HG500, HG1000 Chrysler: RV2
©2020, Santech Industries, LLC, All Rights Reserved Please visit www.omega-usa.com for our latest updates
2149
